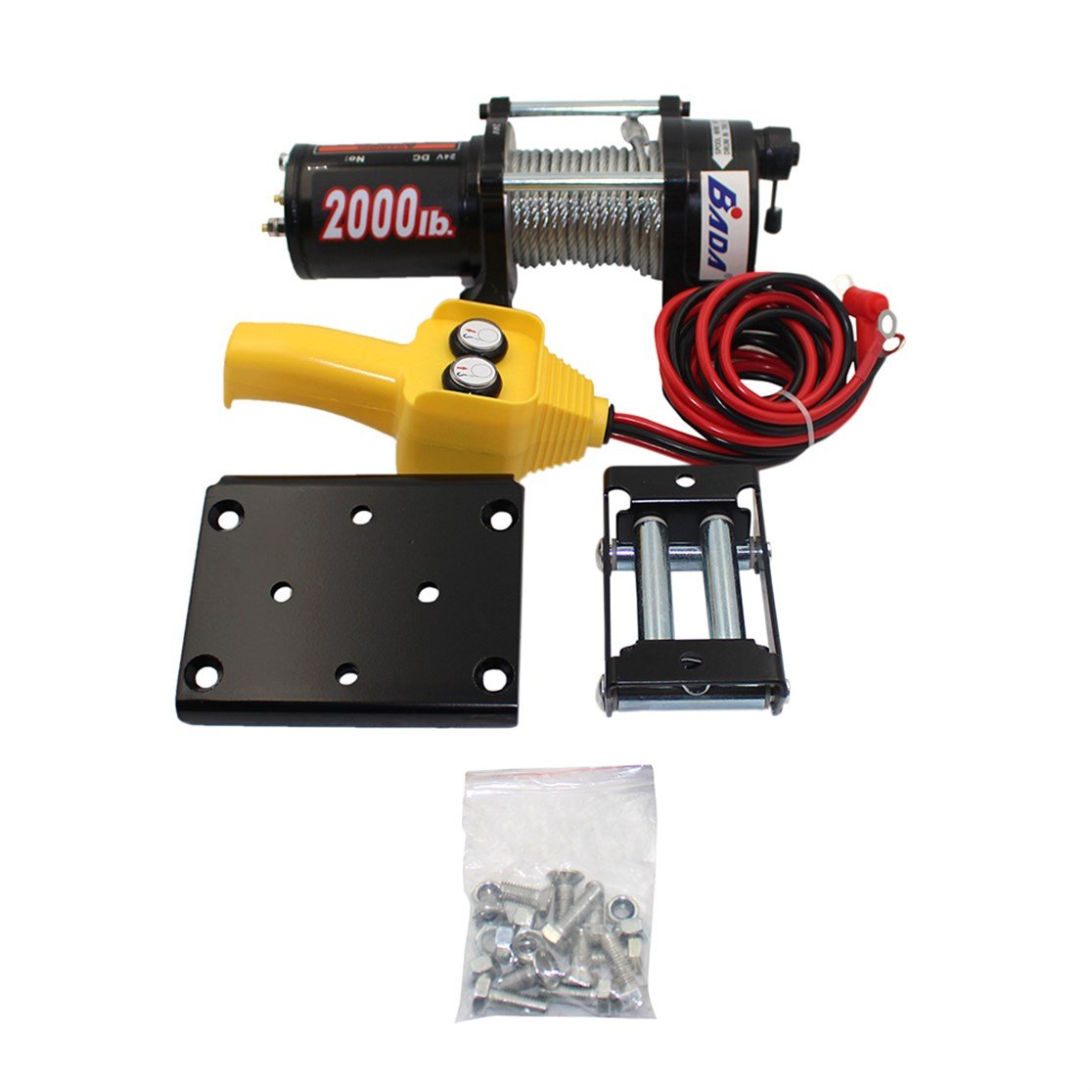

DW2000 |
DW3000 |
DW4000 |
DW5000 |
| Derecelendirilmiş Çekme Halatı Direnci |
2000lbs (909kgs) |
3000lbs (1363kgs) |
4000lbs (1818kgs) |
5000lbs (2272kgs) |
| Motor Bilgisi |
12V DC 0.7KW/0.95HP |
12V DC 0.95KW/1.3HP |
12V DC 1.3KW/1.75HP |
12V DC 1.7KW/2.3HP |
| 24V DC 0.8KW/1.1HP |
24V DC 1.05KW/1.4HP |
24V DC 1.4KW/1.9HP |
24V DC 1.8KW/2.45HP |
| Vites Küçültme Oranı |
253:01:00 |
253:01:00 |
145:01:00 |
294:01:00 |
| Kablo(çap x uzunluk) |
Ø0.19" x 25' (Ø4.8mmx7.6m) |
Ø0.22" x 46' (Ø5.6mmx14m) |
Ø0.24" x 39' (Ø6.0mmx12m) |
Ø0.24" x 79' (Ø6.0mmx24m) |
| Gövde Büyüklüğü(cap x uzunluk) |
Ø1.5" x 3.15" (Ø38mmx80mm) |
Ø1.5" x 3.15" (Ø38mmx80mm) |
Ø2.16" x 2.95" (Ø55mmx75mm) |
Ø2.48" x 5.5" (Ø63mmx140mm) |
| Önerilen Vidalama Montajı |
4.84" x 3" (123mmx76mm) 4-M8 |
4.84" x 3" (123mmx76mm) 4-M8 |
4.84" x 3" (123mmx76mm) 4-M8 |
6.5" x 4.5" (165mmx114mm) 4-M10 |
| Halat Boyu |
7.2(2.2) |
6.07(1.85) |
7.87(2.4) |
15.98(4.87) |
| |
| |
DW6000 |
DW8000 |
DW10000 |
DW12000 |
| Derecelendirilmiş Çekme Halatı Direnci |
6000lbs (2727kgs) |
8000lbs (3636kgs) |
10000lbs (4545kgs) |
12000lbs (5454kgs) |
| Motor Bilgisi |
12V DC 1.9KW/2.6HP |
12V DC 2.8KW/3.8HP |
12V DC 4.4KW/6.0HP DC |
12V DC 5.0KW/6.8HP DC |
| 24V DC 2.0KW/2.7HP |
24V DC 3.0KW/4.1HP |
|
|
| Vites Küçültme Oranı |
294:01:00 |
294:01:00 |
294:01:00 |
402:01:00 |
| Kablo(çap x uzunluk) |
Ø0.24" x 92' (Ø6.0mmx28m) |
Ø0.32" x 95' (Ø8.0mmx29m) |
Ø0.36" x 92' (Ø9.2mmx28m) |
Ø0.43" x 92' (Ø11mmx28m) |
| Gövde Büyüklüğü(cap x uzunluk) |
Ø2.48" x 8.98" (Ø63mmx228mm) |
Ø2.48" x 8.98" (Ø63mmx228mm) |
Ø2.48" x 8.98" (Ø63mmx228mm) |
Ø2.83" x 8.58" (Ø72mmx218mm) |
| Önerilen Vidalama Montajı |
10" x 4.5" (254mmx114mm) 4-M10 |
10" x 4.5" (254mmx114mm) 4-M10 |
10" x 4.5" (254mmx114mm) 4-M10 |
10" x 4.5" (254mmx114mm) 4-M12 |
| Halat Boyu |
26.67(8.13) |
20.87(6.36) |
18.00(5.5) |
18.00(5.5) |
